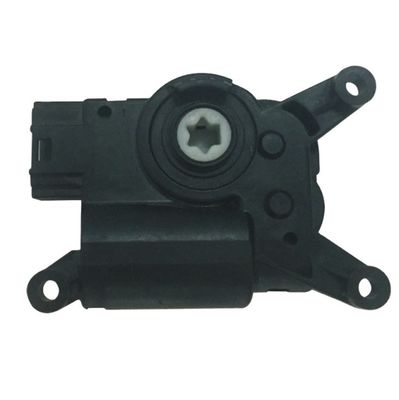

83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems
  • name
  • name
  • name
  • name
  • name
  • name

83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems

MOQ: 50
Price: USD 5~50/unit
Standard Packaging: Carton
Delivery Period: 30 days
Payment Method: T/T
Supply Capacity: 5000EU/M
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
Newbase
Purpose:
For Replace/repair
Condition:
New
Year:
2009-2009
Model:
Atom
Size:
83X50X28
Material:
ABS
Car Fitment:
Ariel
OE NO.:
N/A
Quality Certifications:
TS16949/ISO9001
Color:
Black
Product Name:
Blend Door Actuator
Used For:
Yutong Kinglong Sunlong Higer Bus
Applicable Vehicle:
Passenger Bus
Type:
Diesel Engine
Name:
Blend Door Actuator
Certificate:
ISO
Highlight:

ODM heater blend door actuator

,

83X50X28 heater blend door actuator

,

ODM air door actuator

Product Description
Bus HVAC Blend Door Actuator - 83X50X28mm
This precision blend door actuator controls the fresh air damper in bus air conditioning and heating systems, ensuring optimal climate control performance.
Key Functions
  • Controls fresh air damper in bus HVAC systems
  • Auto servo motor operation for precise positioning
  • Compact design for space-constrained installations
Vehicle Applications
Compatible with WINIA MANDO, HYUNDAI, KIA, SSMC, DAIHAN, DENSO, and YUTONG BUS systems.
83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 0 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 1
Technical Specifications
83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 2 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 3 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 4 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 5
Parameter Specification
Power Supply DC24V (DC16V-DC30V)
Power Consumption 3W
Current Max. 70mA
Electrical Connection Max. 1m × 0.5mm²
Direction of Rotation CW/CCW
Angle of Rotation 114°±2° (adjustable)
Torque 4kgf.cm
Running Time 3.5±0.5rpm
Locked Torque 12kgf.cm
Locked Current Max. 250mA
Noise Level Max. 43dB(A)
Ambient Temperature -30°C to +80°C
Storage Temperature -40°C to +85°C
Life Cycle Max. 500,000 cycles
Dimensions 83 × 50 × 28mm
Weight 94g
Quality Certifications: TS16949 / ISO9001
Manufacturing Excellence
83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 6 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 7 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 8 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 9 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 10 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 11 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 12 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 13 83X50X28 ABS Material Blend Door Actuator with 500,000 Cycle Life for Bus HVAC Systems 14
Tags:

heater blend door actuator,

hvac blend door actuator,

automotive aircon parts
