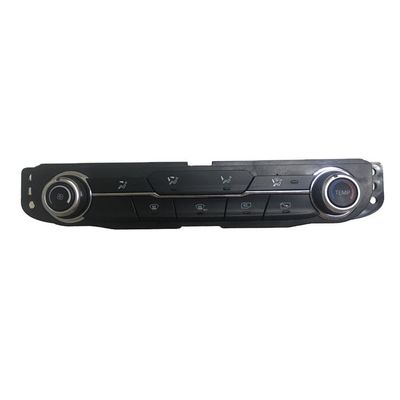

Tractor Engineering Vehicle HVAC Module AC Control Panel Car ODM

Products

Transportation Refrigeration Units

Tractor Engineering Vehicle HVAC Module AC Control Panel Car ODM

MOQ:	50
Price:	USD 50~100/unit
Standard Packaging:	Carton
Delivery Period:	30 days
Payment Method:	T/T
Supply Capacity:	3000EU/M

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Newbase

Model Number

CK200216

Purpose:

For Replace/repair

Condition:

Year:

Universal

Model:

Universal

Engine:

Universal

OE NO.:

Car Fitment:

Universal

Type:

A/C SWITCH, Air Conditioner

Warranty:

12 Months

Car Make:

Car Bus Coach Truck

Application Case:

SAFKAR,SUTRAK

Bus Model:

SAFKAR,YILKAR

Quality:

100% Tested

Packing:

Carton Packing

Delivery Time:

15-20days

Guarantee:

1 Year Under Nomal

Material:

Application:

Car Air Conditioner System

10PCS

Highlight:

Tractor hvac module

ODM hvac module

ODM ac control panel car

Product Description

Truck Bus Car Engineering Vehicle A/C Heater Control Panel for Universal Car Fitment Customized Design Available

CK200216 tractor air condition controller
CK200216 bus air conditioner controller apply to the climate control of bus.

Main functions
Fan hi, Fan mid, Fan low;Error display;Compressor indicating,shift function.

Application case
SAFKAR,YILKAR

Power supply	DC12V(DC9+1V-15+1V)
Power consumption	3W
Current	Max.200mA
Dimensions	118X53X23mm
Input	1) Inside temp. sensor(25°C,Rb=5K,B=3274) 2) Defrost sensor(25°C,Rb=5K,B=3274) 3) Power check 4) Pressure switch 5) ACC powerDC12V(battery)
Output	1) Evaporate High (Max 0.4A) 2)Evaporate Middle (Max 0.4A) 3) Evaporate Low (Max 0.4A) 4) Compressor& Clutch(max 0.4A)
Display	2 segment
Ambient temperature	-30°C—80°C 5%-95%RH Non-condensing
Storage temperature	-10°C—70°C 5%-95%RH Non-condensing
Display precision	Dual digit display of set temp., accuracy 1°C; dual digit display of inside temp. accuracy 1°C
Humidity test standard	Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp., defrost on at 2°C, defrost off at 4°C
Connector	5569-10A ,5569-4A
Faceplate level	IP43
EMC level	EN50081&EN50082-2
Security level	Applied to EN61010-II, Pollution degree: II
Weight	305g

Products Description

CUSTOM A/C heater control units for vehicle transport refrigeration van passenger car auto bus truck 12/24V hvac control module

Bus air conditioning control panel: Bus Internal Climate Control (Successful Case: YUTONG,Winia mando,Hyundai,Yuxin automative air conditioner)

Main function: Manual operation, cool, fresh air, error alarm, air-flow regulation, linear temp. setting.(can be customized as your requiry)

Application case: (can be customized as your requiry)

Technical date (can be customized as your requiry)

1) Purport:

Supply the excellent Vehicle environment control product and advance technology

2) Fast delivery and service

NEWBASE set the branch office or sales agent around the world.The professional engineers would be available for your
application.Our technical people would make model-selection or design suggestion and help you get the most suitable product.

3) AE technology support:

NEWBASE technology support engineers help you to install and test the system,meanwhile,with adequate knowledge and experience in
HVAC system,they could answer you the other questions about AC system.

4) After sale service:
NEWBASE offer super technical support for after sales,they are knowledgeable enough to replease you from you the after-sales
trouble.
