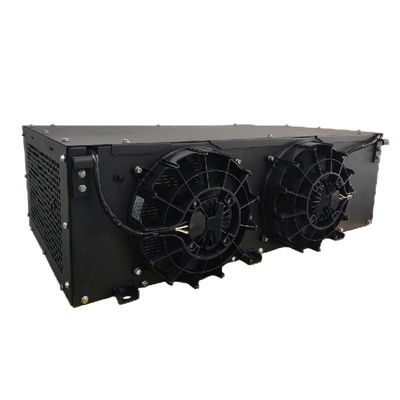

Custom 10KW BTMS System Thermal Cooling Unit In Electric Vehicle Bus Truck

Products

Transportation Refrigeration Units

Custom 10KW BTMS System Thermal Cooling Unit In Electric Vehicle Bus Truck

MOQ:	10
Price:	USD 800~2000/unit
Standard Packaging:	Steel Bracket
Delivery Period:	30 days
Payment Method:	T/T
Supply Capacity:	1000EU/M

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Newbase

Purpose:

For Replace/repair

Condition:

New

Year:

Universal

Model:

Universal

Size:

Various

Material:

Metal

Car Fitment:

Universal

OE NO.:

Bus Model:

YUTONG

Application:

Electric Bus

Product Name:

Water Cooled Unit

Type:

Energy Electric Bus Chassis

Used For:

Kinglong Zhongtong HigerGolden Dragon Bus

Quality:

High-Quality

Item No:

Coaster 1

Description:

Chinese Brand BUS

PACKING:

Neutral Packing

WARRANTY:

6 Months

Highlight:

Bus Truck BTMS System

Thermal Cooling BTMS System

10KW thermal system in electric vehicle

Product Description

Electric Bus Truck Independent Cooling System for Battery Thermal Management in Kinglong Zhongtong HigerGolden Dragon Bus

NEWBASE Battery Thermal Management System (BTMS)

1. What is a BTMS?

BTMS stands for Battery Thermal Management System. It is a specialized system designed to control the temperature of battery packs or modules, ensuring that batteries operate within an optimal temperature range. This is crucial for maintaining battery performance, extending service life, preventing safety risks, and optimizing the energy efficiency of the entire battery system.

2. Operating Environment of BTMS

The operating environment of a BTMS is often harsh and includes:

Wide Temperature Range: The BTMS needs to operate stably within the working temperature range of the battery, typically from -40°C to 60°C, or even higher.
High Vibration and Shock: The BTMS must withstand high levels of vibration and shock generated during battery operation.
Humid and Corrosive Environments: The BTMS should be capable of functioning in humid and corrosive conditions, such as rainy weather, snowy environments, or high salt-fog areas.

3. Key Features of BTMS

The features of a BTMS primarily include:

Real-time Performance: The BTMS must be capable of monitoring the temperature distribution of the battery in real-time and implementing rapid and effective control measures.
Accuracy: The BTMS needs to accurately measure the battery temperature to make correct control decisions.
Reliability: The BTMS must operate reliably to ensure the safety and performance of the battery.
Efficiency: The BTMS should work efficiently to minimize energy consumption.

Integrated thermal management types

According to the specific situation and the actual requirements of customers (integrated air conditioning + battery, battery + air conditioning + motor cooling, comprehensive heat management with heat recovery function, etc), 5KW, 8KW, 10KW, 13KW and other different power units can be selected;

Functional implementation(3KW): 1. The unit can achieve the cooling capacity demand of 3kw； 2. PTC liquid heater (6-14kw), with standby, cooling, heating and self-circulation working mode; 3. Use CAN 2.0 communication; 4. With the unit fault self-diagnosis function; 5. Upload real-time power information; 6. EMC meets the grade requirements; 7. Unit weight: 35kg ± 1kg;

Functional implementation(5KW): 1. The cooling capacity requirement of 5 kW can be realized by adjusting the configuration; 2. PLC liquid heater (6-14kw) with standby Refrigeration, heating, self-circulation working mode; 3. Use CAN 2.0 communication; 4. With the unit fault self-diagnosis function; 5. Upload real-time power information; 6. EMC meets the grade requirements; 7. Unit weight: 38kg ± 1kg;

Functional implementation(8KW): 1. Can be configured with PTC liquid heater, with standby, refrigeration, heating and self-circulation working mode; 2. Network control can be realized; 3. Use CAN 2.0 communication; 4. With the unit fault self-diagnosis function; 5. Upload real-time power information; 6. EMC meets the grade requirements; 7. Unit weight is 50kg ± 2kg.

Functional implementation(10KW): 1. Can be configured with PTC liquid heater, with standby, refrigeration, Heating and self-circulation working mode; 2. Use CAN 2.0 communication; 3. With the unit fault self-diagnosis function; 4. Upload real-time power information; 5. EMC meets the grade requirements; 6. Unit weight is 68kg.

Functional implementation(13KW) : 1. Can be configured with PTC liquid heater, with standby, refrigeration, Heating and self-circulation working mode; 2. Use CAN 2.0 communication; 3. With the unit fault self-diagnosis function; 4. Upload real-time power information; 5. EMC meets the grade three requirements; 6. Unit weight is 110 ± 4kg.

Note: The selection of units is mainly based on the battery capacity and the specific needs of customer integrated thermal management, and can be applied to a variety of vehicle models (light trucks, buses, heavy trucks, construction machinery, mining cards, etc.)

Product Paramenters

Unit Model	NBSLJZ-03-01
Rated cooling capacity (kw)	3.5
Low-voltage power demand	450W
High voltage power supply	DC400V-DC750V
Low voltage power supply	DC24V(18V-32V)
Built in water pump	＞20L/min @110 KPa
Control power supply	DC24V battery provides on/off signal
Protection level	IPX7
Refrigerant	R134a
Type of secondary refrigerant	50%VV Ethylene glycol aqueous solution
Dimensions	530(L)446(W)365(H)
Unit fixed point	Φ12 holes *4
Joint	Inlet and outlet water pipeΦ25
Connector	can be configured according to customer needs
Low voltage power	24V 450W

Unit Model	NBSLJZ-05-01
Rated cooling capacity (kw)	5
Heating capacity	6-14kw(Optional)
High voltage power supply	Rated voltage 320VDC (220~450 VDC)
Low voltage power supply	DC24V(18V-32V)
Built in water pump	11m&1800l/h
Control power supply	DC24V battery provides on/off signal
Protection level	IPX7
Refrigerant	R134a
Type of secondary refrigerant	50%VV Ethylene glycol aqueous solution
Dimensions	635(L)530(W)380(H)
Unit fixed point	569mm369mm Φ12holes 4
Joint	Inlet and outlet water pipeΦ25
Connector	can be configured according to customer needs
Low voltage power	24V 600W

Unit Model	NBSLJZ-08-01
Rated cooling capacity (kw)	8
Low-voltage power demand	600W
High voltage power supply	DC400V-DC750
Built in water pump	20m&2000l/h
Control power supply	DC24V battery provides on/off signal
Protection level	IPX7
Refrigerant	134a/R407C
Type of secondary refrigerant	50%VV Ethylene glycol aqueous solution
Dimensions	820(L)575(W)285(H)
Unit fixed point	495mm320mm Φ12holes 6
Joint	Inlet and outlet water pipeΦ25(Reserved overflow pipeΦ8)
Connector	can be configured according to customer needs
Electronic control	Four in one/Three in one integrated

Unit Model	NBSLJZ-10-01
Rated cooling capacity(kw)	10
Heating capacity	24KW(Optional)
High voltage power supply	640VDC (400~750 VDC)
Built in water pump	17.5m&2880l/h
Control power supply	DC24V battery provides on/off signal
Protection level	IPX7
Refrigerant	134a
Type of secondary refrigerant	50%VV Ethylene glycol aqueous solution
Dimensions	960(L)603(W)291(H)
Unit fixed point	521mm320mm Φ12holes 6
Joint	Inlet and outlet water pipeΦ25(Reserved overflow pipeΦ8)
Connector	can be configured according to customer needs
Electronic control	Four in one/Three in one integrated

Unit Model	NBSLJZ-13-01
Rated cooling capacity (kw)	12
Heating capacity(kw)	Optional24Kw-30Kw
High voltage power supply	DC400V-DC750V
Low voltage power supply range	DC 18~32V
Energy efficiency ratio	2.0
Protection level	IPX7
Refrigerant	134a/R407C
Type of secondary refrigerant	50%/50% Ethylene glycol aqueous solution
Dimensions	L1370×W1030×H285 mm
Unit fixed point	Φ12holes *8
Joint	Inlet and outlet water pipeΦ25
Connector	can be configured according to customer needs
Electronic control	Four in one/Three in one integrated

Workshop

Exhibition

Certifications

FAQ

Q1: Are you a factory?
A: Yes, we are a factory with our own R&D, design, manufacturing, sale, after-sales service, located in China. Alibaba certificate of Manufactory.

Q2: Do you support OEM/ODM?
A: Yes, ODM/OEM is supported for our clients.

Q3: How about your after-sales service?
A: In general, we offer one year warranty without man-made vandalism or wrong operation.

Q4: What is the packing of the products?
A: Strong export carton(inner coloful box and outer carton box) and Pallets.

Q5: Do you welcome to be dealer or distributor of newbase?
A: Yes, waiting for your joining.
